| ชื่อแบรนด์: | LIKEE |
| หมายเลขรุ่น: | LKC500 |

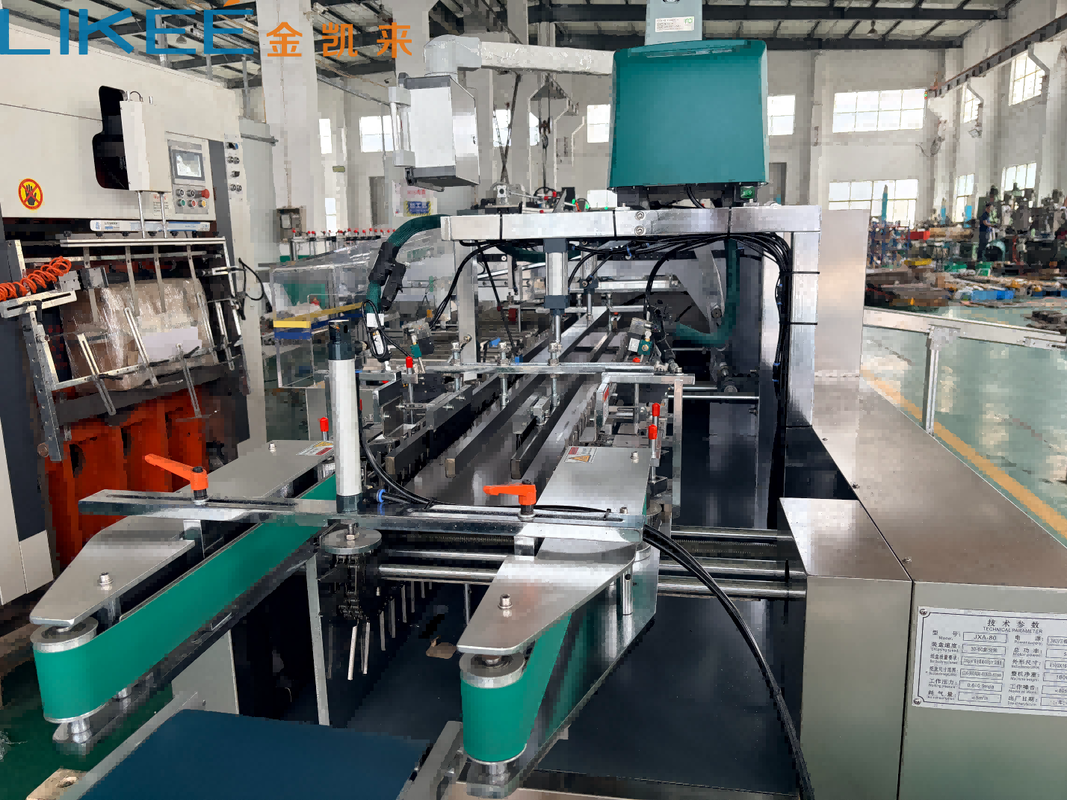

This automatic cartoning machine is specifically engineered for packaging aluminum foil small rolls. It integrates multiple functions into one continuous automated process including feeding, box opening, loading, glue spraying, sealing, and waste rejection.
| Parameter | Specification |
|---|---|
| Encasing Speed | 30-60 boxes/min |
| Box Quality Requirement | 300g/m³ or 400g/m³ White Cardboard |
| Box Dimension Range (L×W×H) | (200~460) × (30~60) × (30~60) mm |
| Working Pressure | 0.6-0.9 Mpa |
| Air Consumption | < 5 m³/h |
| Power Supply | 380V, 3-Phase AC, 50Hz |
| Motor Power | 5 KW |
| Machine Dimension (L×W×H) | 4100 × 1600 × 1900 mm |
| Machine Weight | 1800 KG |
| Noise at Work | < 80 dB |
The machine accommodates various roll sizes as long as the carton dimensions fall within (200-460)mm length × (30-60)mm width × (30-60)mm height. Changeover is achieved by adjusting tooling and templates.
A photoelectric detection and tracking system inspects each box before sealing. If no product is detected inside, the machine will not seal or discharge the box, avoiding empty packaging waste.
Yes. It is designed to run reliably with 300g/m³ or 400g/m³ white cardboard. Simple tooling adjustments allow adaptation to different materials and thicknesses.
The main drive motor is equipped with an overload protection device. An optional flip-top safety protective cover is also available, ensuring operator safety while allowing easy access for maintenance.
The machine requires a 380V/50Hz three-phase AC power supply and a compressed air source of 0.6-0.9 Mpa with an air consumption of less than 5 m³/h.
Operating noise is below 80 dB, meeting standard industrial workshop noise levels without requiring special soundproofing.
